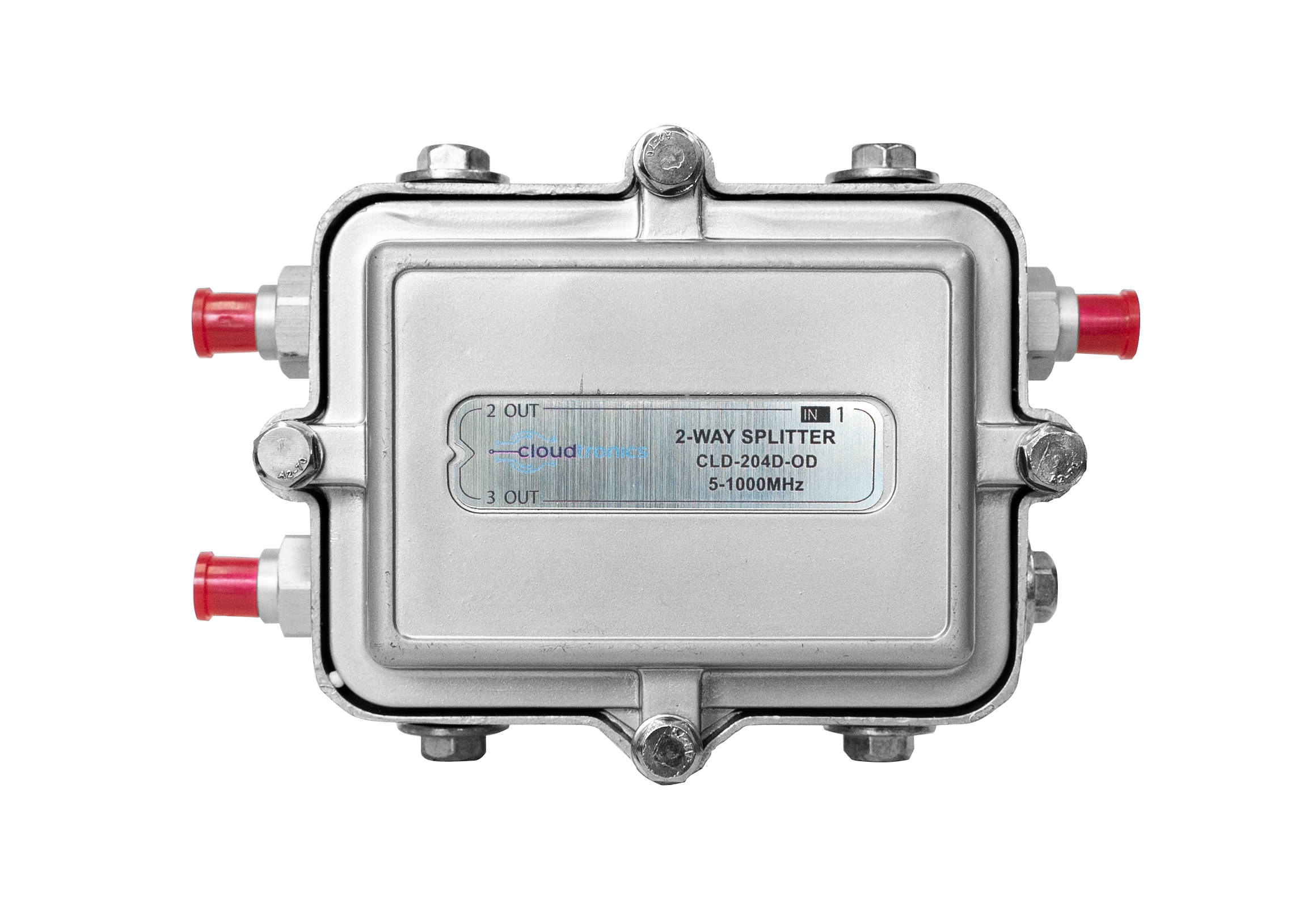

2-WAY SPLITTER

CLD-204D-OD

Features

– RFI (woven metallic) gasket ensures against ingress/egress interference, ≥ 110dB RFI shielding.
– Fuseable configuration.
– Heat shrink ridges for easy installation.
– Stainless steel hardware for corrosion resistance.
– Aluminum alloy housing with weather resistant powder coating and spray painting.
– Weather seal gasket ensures water tight protection, tested at 15 psi (1.0kg/cm2) / 60s,at least IP56.
– All ports are 5/8-24 female standard.
– Nominal impedance (all ports): 75 Ohms.
– Power Passing: 15A, 90VAC (IN-OUT All Ports).
– Response Flatness: ≤ ± 0.75 dB max.
– Hum Modulation at 10A: ≤ -70dB; at 12A: ≤ -65dB.
– Using 2-layer high quality FR4 board P.C.B (Printed Circuit Board) for RF applications.
– Using high quality chip capacitors and chip resistors.
– High Voltage Blocking Capacitors – All ports Surge With stand at IEEE C62.41-1991
   Category B3 (1.2/50 μs – 8/20 μs Combination Wave, 6000 V, 3000 A): 2KV Capacitors.
– Use plug inserts with Insurance which are used in car.



Specification

INSERTION LOSS (IN-OUT) max

5 – 65 MHz

65 – 550 MHz

550 – 750 MHz

750 – 1000 MHz



ISOLATION (OUT-OUT) min.

5 – 1000 MHz



RETURN LOSS (IN & OUT) min

5 – 1000 MHz

POWER PASS (MAX) (A)

RFI(dB)

Composite Cross Modulation(dB)

Voltage(V)



OUTDOOR SPLITTER VALUE (dB) 2-WAY

4.0

4.2

4.5

5.1





25





16

15 @90VAC

≥110

≥66

90 typ.@50Hz
